Hydraulic elbow machine
|
If you can envision it,We can supply it. E-mail:sales@heiyanint.com
- Description
- Specification
- Congeneric Products

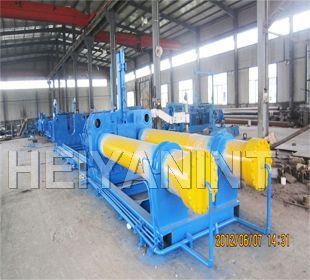

Hei Yan has four cylinder and two cylinder two types of Hydraulic Elbow Machine.
Hydraulic elbow machine is widely used in pipeline industry,with Medium frequency power source,Hydraulic elbow machine works fast then man making way of elbows.
Hydraulic elbow machine has following functions :auto mandrel adjustment,auto clamp,also insert board.
Available sizes of hydraulic elbow machine: OD 21-OD 1420
Thickness: Sch 30-Sch XXS
Note: Hydraulic elbow machine 's maximum press is 31.5Mpa,using pressure is 0-24 MPa.
Pump station is combined by stage pumps,due to different flow out,it has 2-4 stages.
Working pump station working pressure :15-24Mpa
Empty fast push/returen working pressure :7Mpa
Clamp pump station working pressure :4Mpa
Auto lift material oil pump pressure:5Mpa
Mandrel adjustment oil pum pressure:10Mpa
Hydraulic oil type 32-46,suitable temperature-40 / 80 degree ,Hei Yan recommend to use antiwear hydraulic oil on hydraulic elbow machine .
