China Induction Pipe Bending Machine
|
If you can envision it,We can supply it. E-mail:sales@heiyanint.com
- Description
- Specification
- Congeneric Products

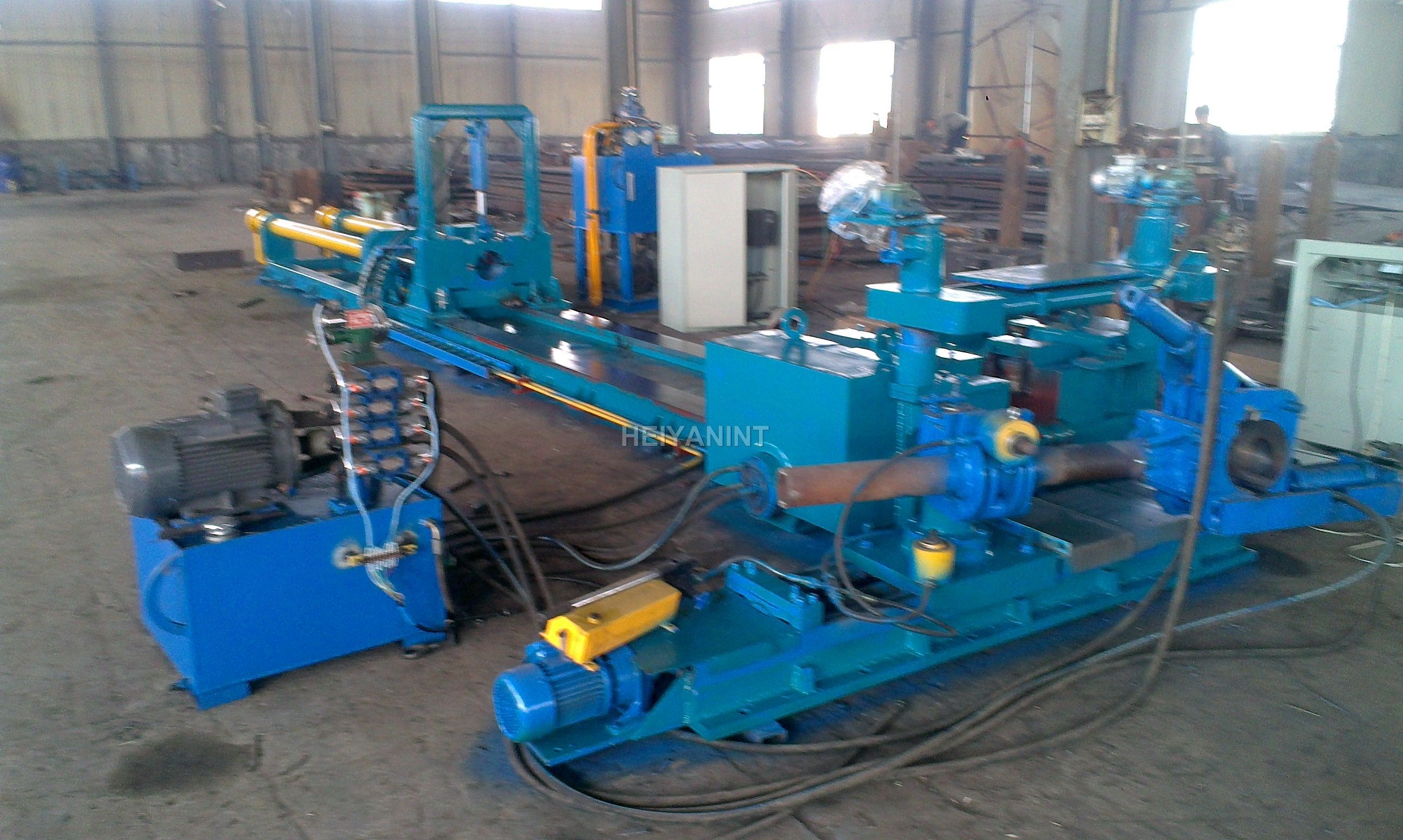

China Induction Pipe Bending Machine
1 China Induction Pipe Bending Machine is designed to bend large diameter pipe and
different kinds of specifics pipe
2 According to customer need,the bending radius and angle can be adjusted freely.
3 The raw material can be: seamless pipe,welded pipe or rolled pipe
4 Bending range from outside diameter 108mm-1420mm,thickness 5mm-120mm
China Induction Pipe Bending Machine heats the pipe inductively over a small cross-
section, while the pipe is mechanically driven through a watercooled induction ring. The bending of the pipe is caused by means of a rotating arm on a pivot that, at the same time, determines the radius of the bend. As the arm is completely free adjustable between its minimum and maximum radius..
Radius of China Induction Pipe Bending Machine: 2.5D-10D
Thickness: 10mm-80mm
Material: Carbon steel, Alloy steel, Stainless steel
Drive type: Hydraulic, chain
Hei Yan Group is specilized in producing China Induction Pipe Bending Machine and can do according to customer requirements.
Hei Yan Group also make pipe bending machine, induction elbow machine,pipe expanding machine,hydraulic tee machine,pipe bevelling machine etc.
if you are interested in receiving more information or have a question regarding any of our products please fill out the form below and we will contact you within 24-48 hours.
