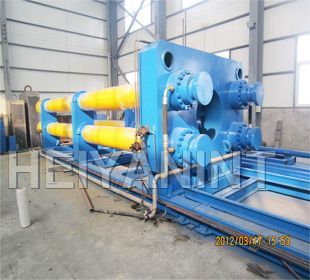

219 Hydraulic elbow forming machine
1. Cylinder: Inside OD180mm, Piston pole diameter: 140mm, stroke: 4m Pressure: 21Mpa 2pc.
Max. pushing force of the two cylinder: 110T
Working speed: 0-170cm/min,Max. return speed: 800cm/min
2. Pump: 63Scy plunger pump 1 set, 18.5KW generator 1set (main working pump)
CB-50 gear pump 1 set, 7.5kw generator 1 set (pushing and return pump)
Hydraulic valve used integrated types of design, manual clamp board, manual loading.
3. Main machine body frame: 18# channel steel, 18 kg steel rail welding.
4. Main machine panel: Welding by 18mm plate
5. Power cabinet:1 set . Operating cabinet 1set
6. Medium frequency 250Kw
7. Scope of supply:
a. Main machine body 1 set, hydraulic pump 1set, Intermediate Frequency Power cabinet:1set front
and back clamp board each 1 set.
b. Medium frequency cabinet 1 set, reactor, capacitor 1 set, water cable 2 pc(L=2500mm)
OD 219 heating coil 1pc
219 Hydraulic elbow forming machine
Hei Yan Group manufacture 219 Hydraulic elbow forming machine from 21mm to 1420mm and act to customer's need.
Welcom to visit Hei Yan Group and contact for more details on elbow forming machine,pipe induction bending,pipe expanding,bevelling machine etc.
