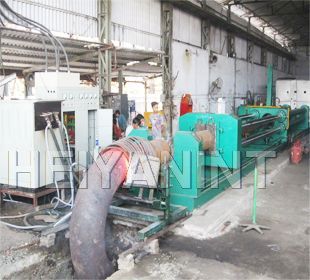

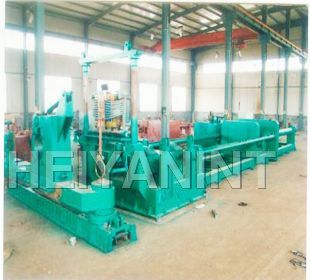

Big Diameter Hydraulic Elbow Forming Machine
The Big diameter Hydraulic Elbow Forming Machine Max. produced elbow:
OD 1067*55 Material : A335 P22.
Main cylinder: Inside OD:390mm Outside OD485mm,stroke:8m
Four cylinder ,Max. pushing power:1432 T, working Max. pushing power:1200T
Operating procedures of Big Diameter Hydraulic Elbow Forming Machine are as following:
According to the elbow size select the main pushing pump-- As per the elbow size select the speed -- feeding, close gate --After the mandril been heated to a suitable temperature begin pushing (during working the pushing speed is adjustable) -Reaching the end point, pushing machine stop automatically- Strobe fix the core rod -- feeding -- release the strobe, pushing machine return to the end point -- strobe leave the core rod 5mm starting pushing
We also manufacture pipe expanding machine,pipe bending machine,medium frequency heating source for customer.
Welcome to contact with us for the Big diameter Hydraulic Elbow Forming Machine. Your demand,our liability.
