Hydraulic Induction Heating Elbow Machine
Raw material steel pipe Hydraulic Induction Heating Elbow Machine use: seamless steel pipe,welded steel pipe and rolled steel pipe.
Elbow produced scope: 25mm-1420mm thickness:5mm-120mm
Angle: 22.5,45,90,135 degree and customer required angle.
The specification (dimension, radius, thickness) of the finished elbows can meet the stipulated international standard, such as ANSI B16.9, ANSI B16.28, DIN2605, GB12459, etc

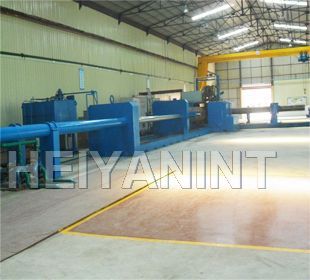

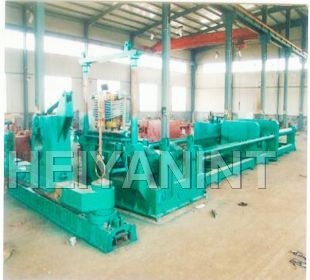

Hydraulic Induction Heating Elbow Machine is made by induction heating power supply.It adopts induction heating power source to push elbows,making the process more effective and more sustainable.The hydraulic elbow machine replace coal buring stove,buring gas,oil burner,ordinary resistance furnace.
Accessories of the process
1. Intermediate frequency power source
2. Heating induction coil
3. Mandrels
4. Hydraulic press
5. Bevel machine
Characteristics Hydraulic Induction Heating Elbow Machine
Hydraulic controlled pushing pedal gate
Hydraulic valve adopt Standard series, magnetic valve 24 control
Supporting pipe is equipped
Supporting plate, pushing plate,gate and gate slide way are under careful process
Valve gate, pushing gate adopts 45 # steel plate
Annealing treatment after welding of supporting plate and pushing plate etc.
passivation and picking treatment after welding pump oil pump
Hydraulic Induction Heating Elbow Machine is made by induction heating power supply.It adopts induction heating power source to push elbows,making the process more effective and more sustainable.The hydraulic elbow machine replace coal buring stove,buring gas,oil burner,ordinary resistance furnace.
