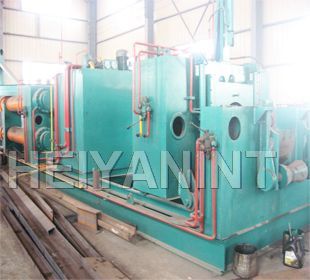

OD 726-46mm High Quality Elbow Forming Machine
OD 726-46mm High Quality Elbow Forming Machine is designed for the processing of elbow.
Following is the OD 729*46 High Quality Elbow Forming Machine's simple information:
Technical Data:
Max. produced elbow OD: 762mm
Min. produced elbow OD:219mm
Max. produced elbow thickness:46mm
Min. produced elbow thickness:16mm
OD 726-46mm High Quality Elbow Forming Machine consists: Host machine, Heating coils frame, Hydraulic system, Electric equipment system.
Host machine is made up of Based frame, Main cylinder, Cylinder fixing box, pushing box, Flashboard, Rail, Rod contacted with core etc.
Heating coils used 12# welding, can move forward and backward,the angel can be adjusted as your need.
Hydraulic system: container 8 mmm Generator: 22KW-2sets,15KW-1set,5.5kw-1set
Electric equipment system:1000KW medium frequency.
